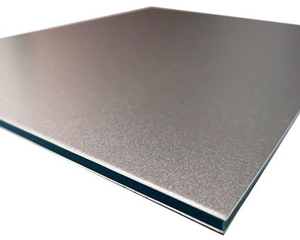

NEWCOBOND® Wall Cladding Aluminum Composite Panel 1220*2440mm 1500*3050mm

Short Description:

NEWCOBOND® wall cladding series includes high glossy colors , matt colors, metallic colors and nacreous colors . Both PE and PVDF coating are available for them.

NEWCOBOND® wall cladding series can bring you more pleasant and bright feeling.With excellent flatness and durability of color lasting, they can be widely used for construction external cladding wall, building facade, outside decoration for shop and mall.

NEWCOBOND® wall cladding panels used quality PVDF coating to achieve outstanding weather-resistance, color guarantee is up to 20 years. Popular thickness is 4mm panel with 0.21mm 0.25mm 0.3mm 0.4mm aluminum skin.


Product Detail

Product Tags

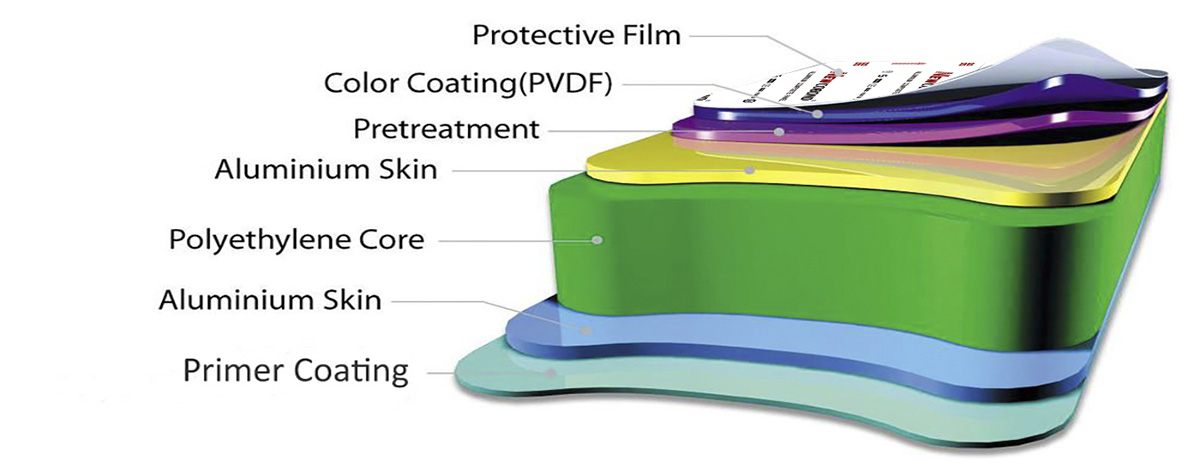

NEWCOBOND used recyclable PE materials that imported from Japan and Korea, composite them with pure AA1100 aluminum, it’s totally non-toxic and friendly to environment.



NEWCOBOND ACP has good strength and flexibility, it’s easy to transform, cut, fold,drill, curve and install them.



Surface treatment with high-grade ultraviolet-resistant polyester paint (ECCA) request, guarantee 8-10 years; if use the KYNAR 500 PVDF paint, guaranteed 15-20 years.



NEWCOBOND can supply OEM service, we can customize size and colors for clients. All RAL colors and PANTONE colors are available


Aluminum Alloy AA1100
Aluminum Skin 0.18-0.50mm
Panel Length 2440mm 3050mm 4050mm 5000mm
Panel Width 1220mm 1250mm 1500mm
Panel Thickness 4mm 5mm 6mm
Surface treatment PE / PVDF
Colors All Pantone & Ral Standard Colors
Customization of size and color Available
Item Standard Result
Coating Thickness PE≥16um 30um
Surface pencil hardness ≥HB ≥16H
Coating Flexibility ≥3T 3T
Color Difference ∆E≤2.0 ∆E<1.6
Impact Resistance impact -paint no split for panel No Split
Abrasion Resistance ≥5L/um 5L/um
Chemical Resistance 2%HCI or 2%NaOH test in 24hours-No Change No Change
Coating Adhesion ≥1grade for 10*10mm2 gridding test 1grade
Peeling Strength Average ≥5N/mm of 180oC peel off for panel with 0.21mm 9N/mm
Bending Strength ≥100Mpa 130Mpa
Bending Elastic Modulus ≥2.0*104MPa 2.0*104MPa
Coefficient of Linear Thermal Expansion 100℃ temperature difference 2.4mm/m
Temperature Resistance -40℃ to +80℃ temperature without change of color difference and paint peel off,peeling strength average dropped≤10% Change of glossy only.No paint peel off
Hydrochloric Acid Resistance No change No change
Nitric Acid Resistance No Abnormity ΔE≤5 ΔE4.5
Oil Resistance No change No change
Solvent Resistance No base exposed No base exposed
