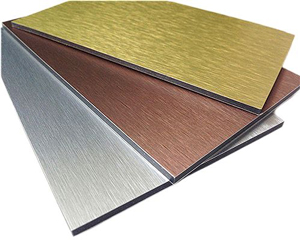

NEWCOBOND® Brushed Aluminium Composite Panel 1220*2440mm/1500*3050mm

Short Description:

NEWCOBOND® brushed aluminum composite panel has high flatness, strong composite rate, and super weather resistance. It uses PE or PVDF coating with excellent weather resistance, ensuring long-lasting color. NEWCOBOND® Brushed aluminum composite panel is lightweight and easy to process. Its superior construction performance can be cut, edged, bent into a curve, right angle with simple woodworking tools, and the installation is simple and quick.
NEWCOBOND® Brushed aluminum composite panel has uniform coating and multiple colors. And it’s very suitable use for UV printing sign boards and billboards.

p3


Product Detail

Product Tags

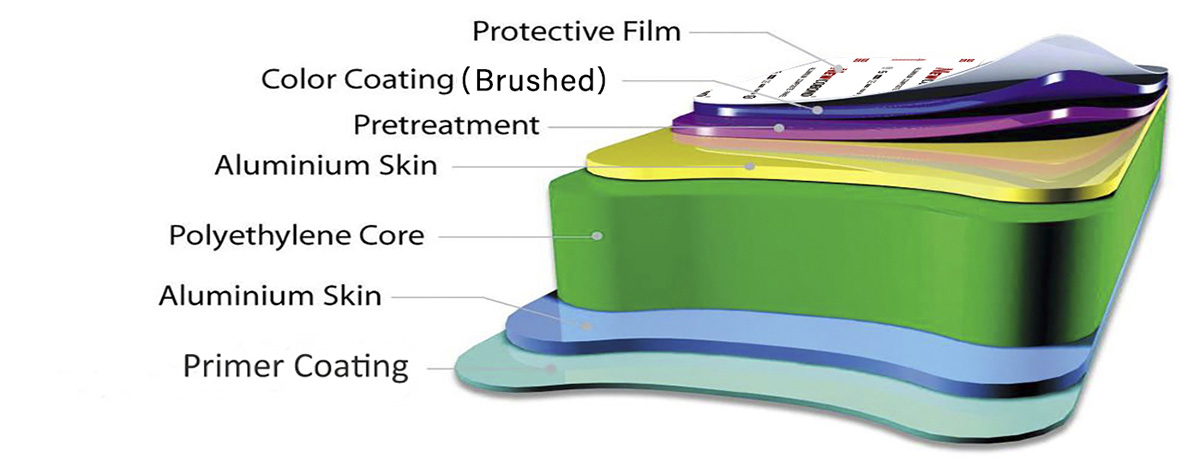

STRUCTURE

p4

ADVANTAGES

p1

PERFECT PERFORMANCE FOR PRINTING

NEWCOBOND brushed ACP is the attractive option for your business signs making, it has good adhesion force to the printing ink.

p3

COLOR VARIOUS & SPECIFICATION CUSTOMIZED

NEWCOBOND brushed ACP has various colors for your choice, such as  gold brushed,silver brushed,cooper brushed,red brushed, black brushed etc. Customization is also available.

p3

ENVIRONMENTAL FRIENDLY

NEWCOBOND used recyclable PE materials that imported from Japan and Korea, composite them with pure AA1100 aluminum, it’s totally non-toxic and friendly to environment.

pp

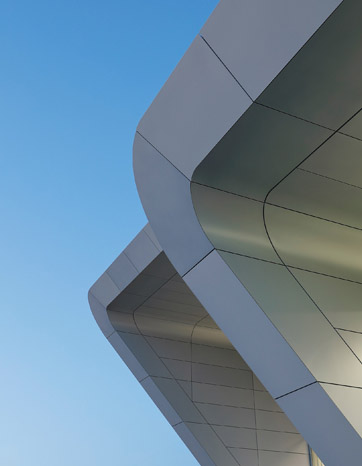

LIGHTWEIGHT AND EASY PROCESSING

NEWCOBOND ACP has good strength and flexibility, it’s easy to transform, cut, fold,drill, curve and install them.It’s very safety for the lightweight advantage.

DATA

Aluminum Alloy AA1100
Aluminum Skin 0.18-0.50mm
Panel Length 2440mm 3050mm 4050mm 5000mm
Panel Width 1220mm 1250mm 1500mm
Panel Thickness 4mm 5mm 6mm
Surface treatment PE / PVDF
Colors All Pantone & Ral Standard Colors
Customization of size and color Available
Item Standard Result
Coating Thickness PE≥16um 30um
Surface pencil hardness ≥HB ≥16H
Coating Flexibility ≥3T 3T
Color Difference ∆E≤2.0 ∆E＜1.6
Impact Resistance 20Kg.cm impact -paint no split for panel No Split
Abrasion Resistance ≥5L/um 5L/um
Chemical Resistance 2%HCI or 2%NaOH test in 24hours-No Change No Change
Coating Adhesion ≥1grade for 10*10mm2 gridding test 1grade
Peeling Strength Average ≥5N/mm of 180oC peel off for panel with 0.21mm alu.skin 9N/mm
Bending Strength ≥100Mpa 130Mpa
Bending Elastic Modulus ≥2.0*104MPa 2.0*104MPa
Coefficient of Linear Thermal Expansion 100℃ temperature difference 2.4mm/m
Temperature Resistance -40℃ to +80℃ temperature without change of color difference and paint peel off,peeling strength average dropped≤10% Change of glossy only.No paint peel off
Hydrochloric Acid Resistance No change No change
Nitric Acid Resistance No Abnormity ΔE≤5 ΔE4.5
Oil Resistance No change No change
Solvent Resistance No base exposed No base exposed
