NEWCOBOND® Fireproof Aluminum Composite Panel FR A2 B1 Grade ACP ACM Panel Fire Resistant Construction Cladding Panel

Short Description:

NEWCOBOND® fireproof aluminum composite panel is composite of aluminum and non-combustible core material. The product is in high demand due to increasing importance placed on architectural requests for safe,non-toxic,and green materials. The panel also possess excellent flame retardant and low smoke emission properties.
NEWCOBOND® fireproof series are especially used for constructions that have fireproof demand. It reaches B1 and A2 fireproof standard, and passed the fireproof test of China National Building Materials Test Center.
NEWCOBOND® fireproof aluminum composite panel’s popular specifications include 4mm panel with 0.21mm,0.3mm,0.4mm,0.5mm aluminum skin.

p3


Product Detail

Product Tags

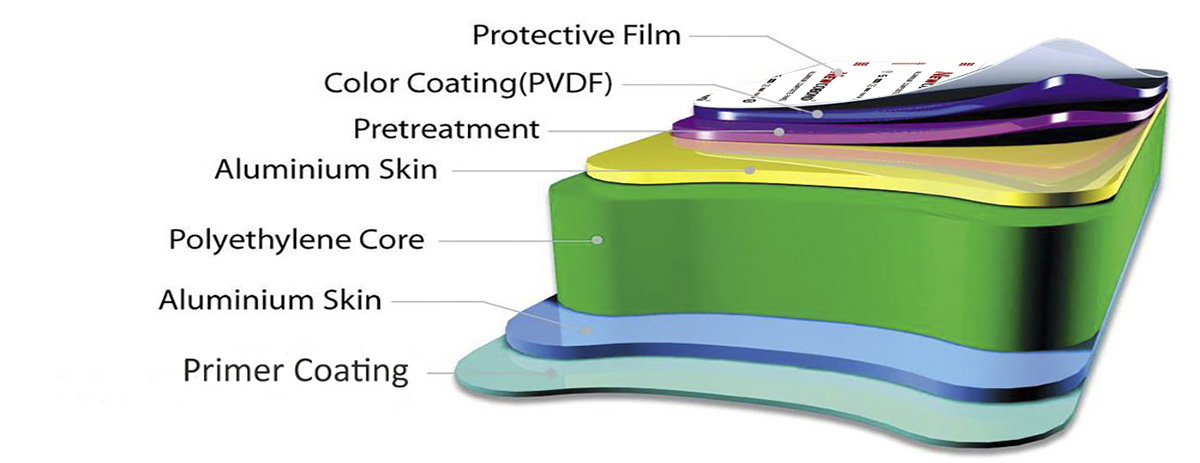

STRUCTURE

pp1

ADVANTAGES

p1

FIREPROOF

It is a safe fire prevention material, in line with the fire resistance requirements of building regulations. NEWCOBOND fireproof series ACP reached B1and A2 fireproof grade.

p3

ENVIRONMENTAL FRIENDLY

NEWCOBOND used recyclable PE materials that imported from Japan and Korea, composite with pure AA1100 aluminum, it’s totally non-toxic and friendly to environment.

p2

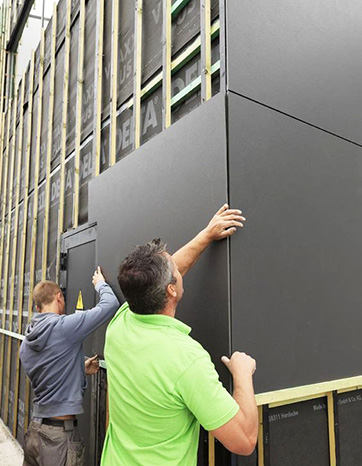

EASY PROCESSING

NEWCOBOND ACP has good strength and flexibility, it’s easy to transform, cut, fold,drill, curve and install them.

p4

WEATHER-RESISTANT

Surface treatment with high-grade ultraviolet-resistant polyester paint (ECCA) request,guarantee 8-10 years; if use the KYNAR 500 PVDF paint, guaranteed 15-20 years.

DATA

Aluminum Alloy AA1100
Aluminum Skin 0.18-0.50mm
Panel Length 2440mm 3050mm 4050mm 5000mm
Panel Width 1220mm 1250mm 1500mm
Panel Thickness 4mm 5mm 6mm
Surface treatment PE / PVDF
Colors All Pantone & Ral Standard Colors
Customization of size and color Available
Item Standard Result
Coating Thickness PE≥16um 30um
Surface pencil hardness ≥HB ≥16H
Coating Flexibility ≥3T 3T
Color Difference ∆E≤2.0 ∆E＜1.6
Impact Resistance 20Kg.cm impact -paint no split for panel No Split
Abrasion Resistance ≥5L/um 5L/um
Chemical Resistance 2%HCI or 2%NaOH test in 24hours-No Change No Change
Coating Adhesion ≥1grade for 10*10mm2 gridding test 1grade
Peeling Strength Average ≥5N/mm of 180oC peel off for panel with 0.21mm alu.skin 9N/mm
Bending Strength ≥100Mpa 130Mpa
Bending Elastic Modulus ≥2.0*104MPa 2.0*104MPa
Coefficient of Linear Thermal Expansion 100℃ temperature difference 2.4mm/m
Temperature Resistance -40℃ to +80℃ temperature without change of color difference and paint peel off,peeling strength average dropped≤10% Change of glossy only.No paint peel off
Hydrochloric Acid Resistance No change No change
Nitric Acid Resistance No Abnormity ΔE≤5 ΔE4.5
Oil Resistance No change No change
Solvent Resistance No base exposed No base exposed
