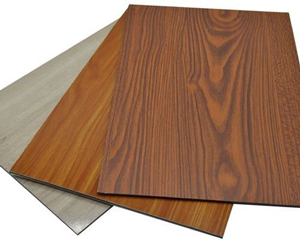

NEWCOBOND® Natural Aluminum Composite Panel with Wood/Marble/Stone Designs

Short Description:

NEWCOBOND® natural coloring of wood grain and marble panels.With transfer a unique image process over a color base coat.The result is natural coloring and grain patterns.A clear top coat protects the natural panels appearance for ensuring quality even applications exposed to harsh weather.
Durable NEWCOBOND® wooden and marble finished acp panel allows architects to incorporate the beauty of natural series products in a lightweight aluminum composite acp sheet that is long-lasting and easy to maintain.It’s the best choice for cladding systems
As wooden panels and marble series represent nature which develops an interest in people in this specific product as all the necessary features are covered along with natural look and feeling

p3


Product Detail

Product Tags

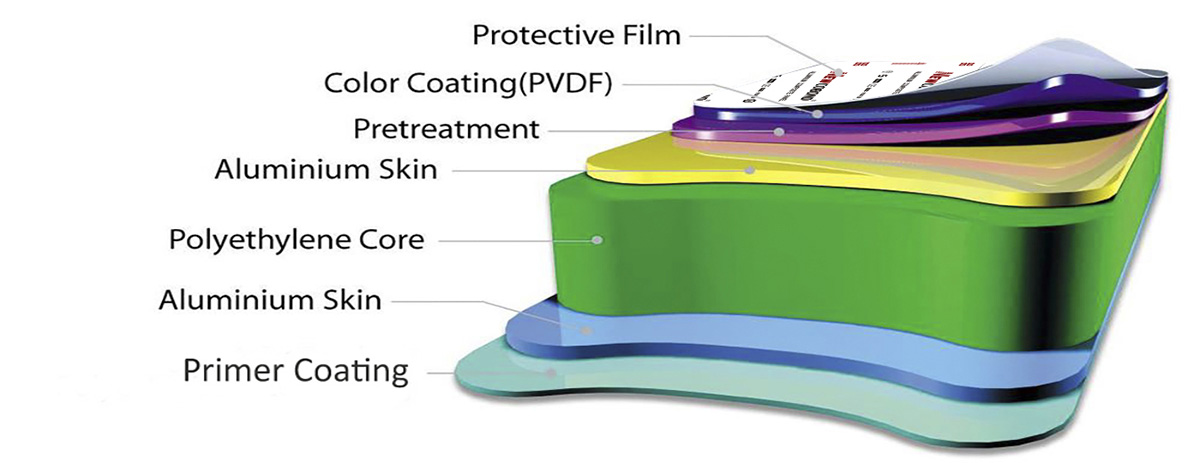

STRUCTURE

p4

ADVANTAGES

p1

WEATHER-RESISTANT

With PE or PVDF coating treatment, the marble and wood designs are very lifelike and durable. Weather-resistant guarantee time up to 15-20 years.

p3

OEM SERVICE

NEWCOBOND can supply OEM service, we can customize size and colors for clients. All RAL colors and PANTONE colors are available

p3

ENVIRONMENTAL FRIENDLY

NEWCOBOND Natural Series used recyclable PE materials that imported from Japan and Korea,composite them with pure AA1100 aluminum, it’s totally non-toxic and friendly to environment.

p2

EASY PROCESSING

NEWCOBOND Natural ACP has good strength and flexibility, it’s easy to transform, cut, fold,drill, curve and install them.

DATA

Aluminum Alloy AA1100
Aluminum Skin 0.18-0.50mm
Panel Length 2440mm 3050mm 4050mm 5000mm
Panel Width 1220mm 1250mm 1500mm
Panel Thickness 4mm 5mm 6mm
Surface treatment PE / PVDF
Colors All Pantone & Ral Standard Colors
Customization of size and color Available
Item Standard Result
Coating Thickness PE≥16um 30um
Surface pencil hardness ≥HB ≥16H
Coating Flexibility ≥3T 3T
Color Difference ∆E≤2.0 ∆E＜1.6
Impact Resistance 20Kg.cm impact -paint no split for panel No Split
Abrasion Resistance ≥5L/um 5L/um
Chemical Resistance 2%HCI or 2%NaOH test in 24hours-No Change No Change
Coating Adhesion ≥1grade for 10*10mm2 gridding test 1grade
Peeling Strength Average ≥5N/mm of 180oC peel off for panel with 0.21mm alu.skin 9N/mm
Bending Strength ≥100Mpa 130Mpa
Bending Elastic Modulus ≥2.0*104MPa 2.0*104MPa
Coefficient of Linear Thermal Expansion 100℃ temperature difference 2.4mm/m
Temperature Resistance -40℃ to +80℃ temperature without change of color difference and paint peel off,peeling strength average dropped≤10% Change of glossy only.No paint peel off
Hydrochloric Acid Resistance No change No change
Nitric Acid Resistance No Abnormity ΔE≤5 ΔE4.5
Oil Resistance No change No change
Solvent Resistance No base exposed No base exposed
